Are you a producer of HVAC systems and do you need an IoT solution to control and manage your products? Then LS Control is the right choice.

About LS control

LS Control provides electronics to enable control and regulation of HVAC systems. The company offers a solution called LS SmartConnect that include hardware as well as software for new and existing product solutions.

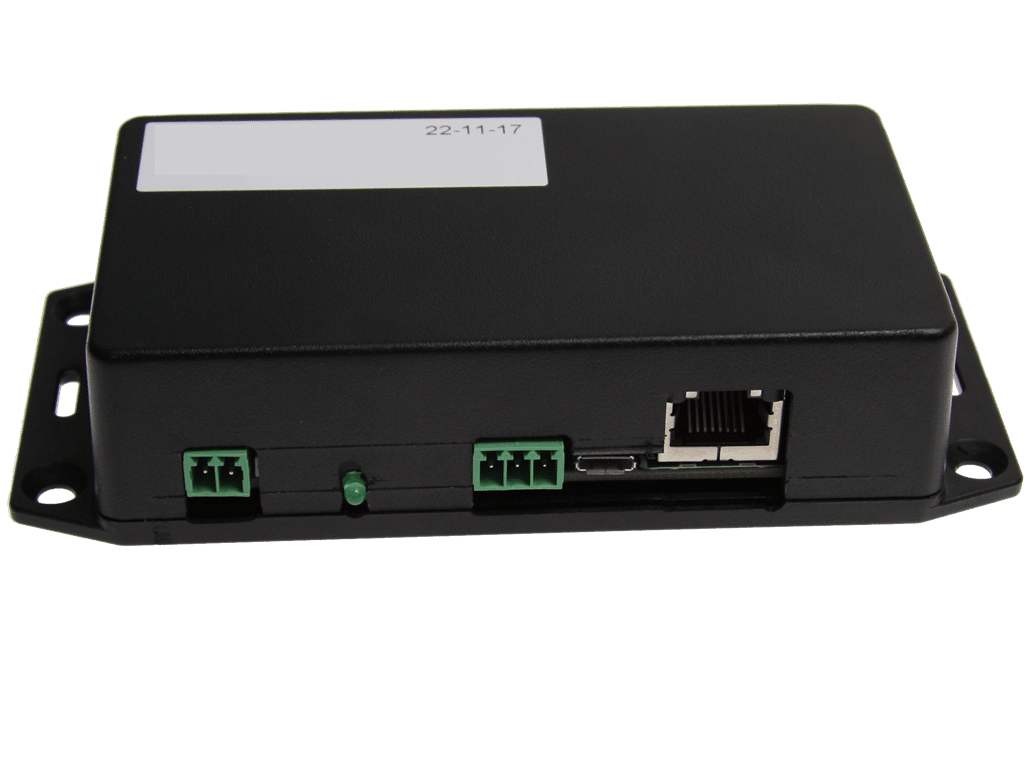

Technical specifications

General
  • EAN: 5703471499957
  • Dimension (HxWxD): 64x138x30mm
  • Enclosure: IP 20
  • Supply Voltage: 9 – 27VDC
  • Power consumption: 90mA v/10V
  • Operating Temperature: 10 – 50°C

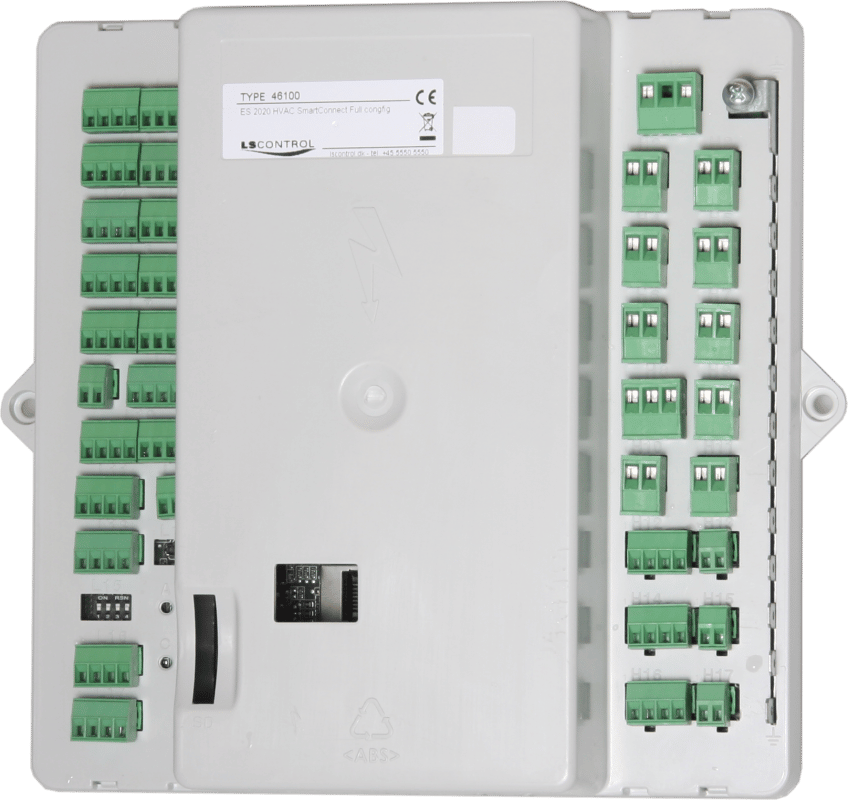

Technical specifications

General
  • EAN: 5703471461008
  • Dimension (HxWxD): 220x223x55mm
  • Enclosure: IP 20
  • Supply Voltage: 230V AC 50Hz
  • Operating Temperature: 0-50°C
Image of Stig Petersen from LS Control and LS Smartconnect

Partnership with nabto

Nabto’s technology has enabled LS Control to create the LS SmartConnect by providing a secure communication between the device and the end-user, which makes remote access possible. With this connection control, maintenance check-ups, and much more can be performed remotely from anywhere.

Click her to read the reference story

Nabto's technology used by LS control

Software from Nabto integrated in ls smartconnect

  • PIC32 based architecture using uNabto SDK for both RPC and streaming.
  • iOS and Android apps based on Ionic/Cordova using Nabto RPC for remote control.
  • .NET based server application using the Nabto Client SDK .NET wrapper to access devices using Nabto RPC and Nabto Streaming.
  • Nabto CA based authentication with integration to custom identity management system.
